Beam Splitting Optics
Beam Splitting Optics
We offer solutions for parallel processing which is based on DOEs or on individual & flexible beam splitting optics!
Our service

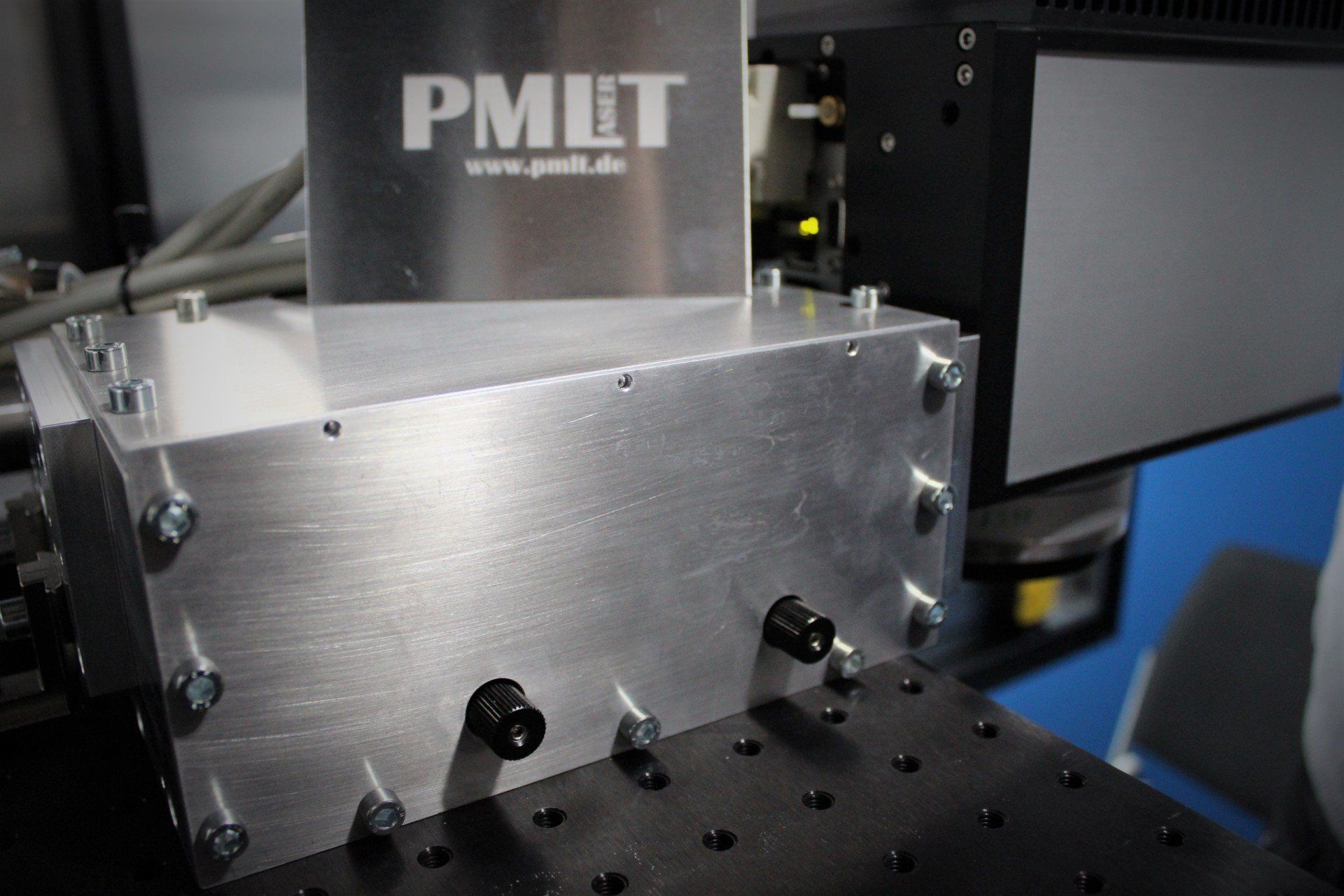

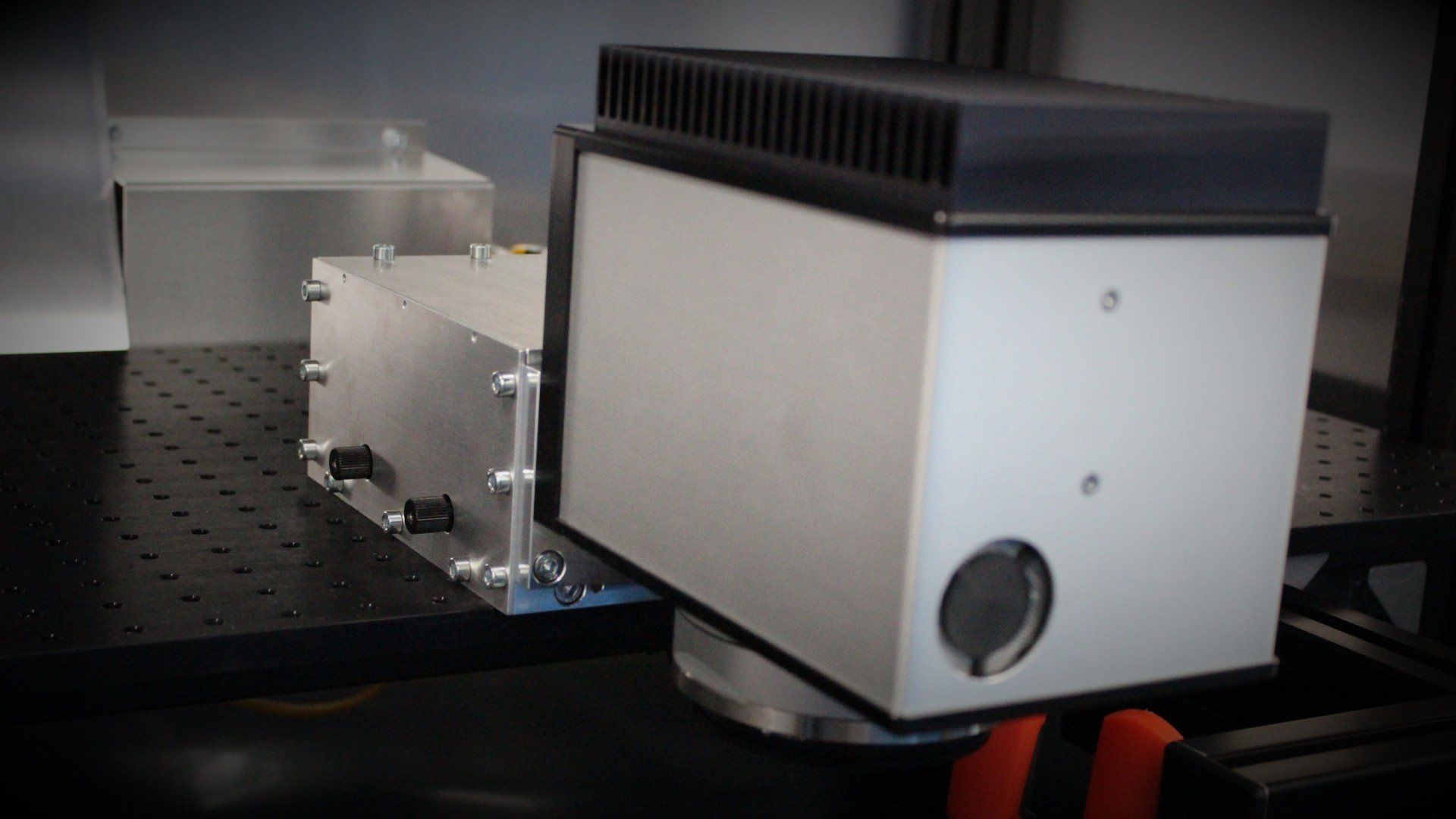

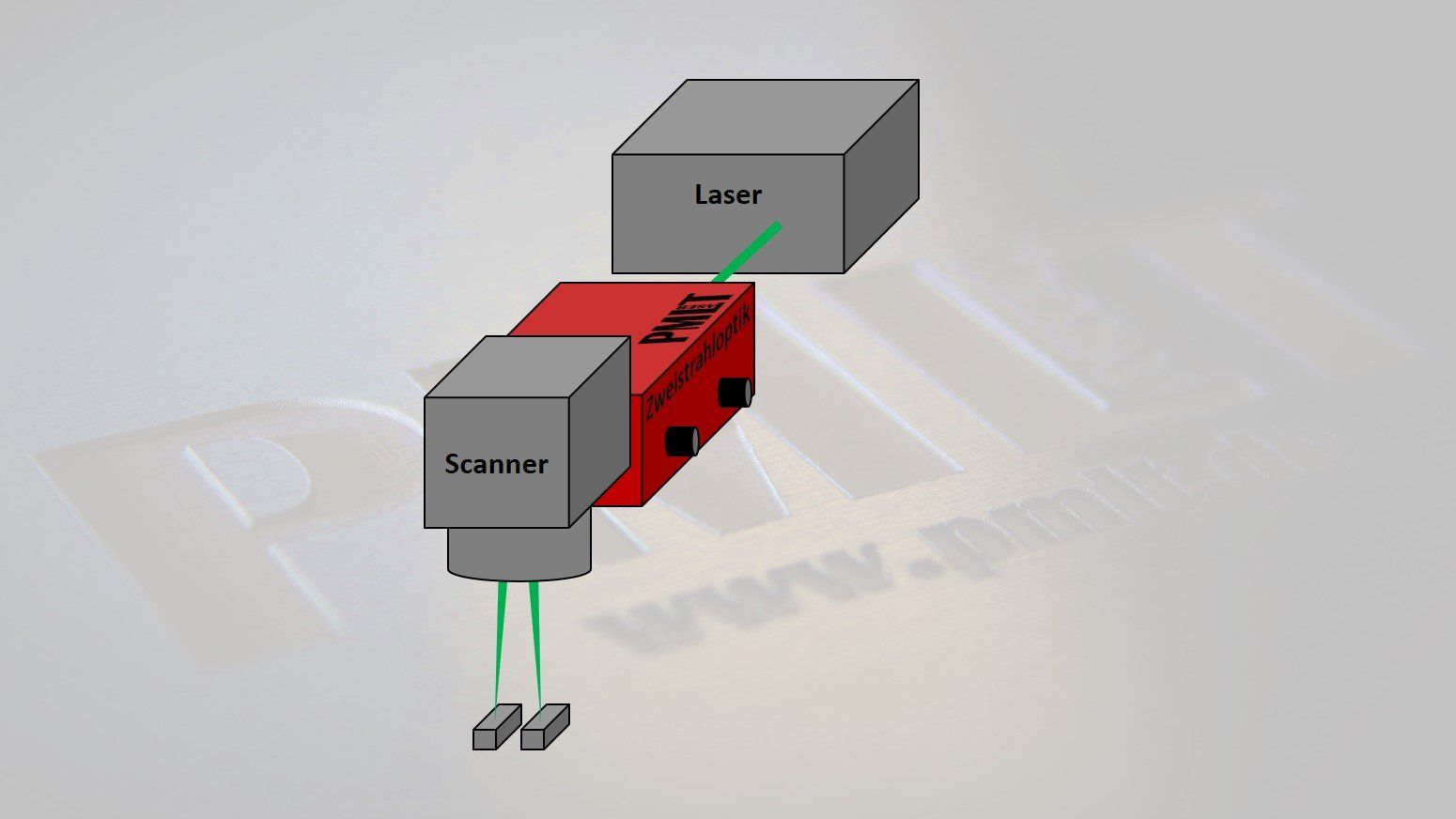

With the PMLT multi-beam optics, two components can be processed simultaneously with only one scanner and only one laser source. The beam spacing and the power distribution can be adjusted flexibly.
A sufficient power or pulse energy reserve of your laser source is a prerequisite for the use of the optics. This is often the case when an increase in pulse energy or performance would lead to poorer process results. If your laser is currently running below 50% of the available power, the process time is halved by using the PMLT double-beam optics.
The main advantage over the use of DOEs (diffractive optical elements) for beam splitting is the flexible setting of the beam spacing and the power distribution. This means that the optics can be used for multiple components or multiple processes.
On request, we also offer a motorized version or couple two lasers into one scanner. Here, the lasers can also differ, so that, for example, a cw laser and a pulsed laser can be coupled in. Contact us to discuss the possibilities of DOEs and flexible beam splitting solutions for your application!
